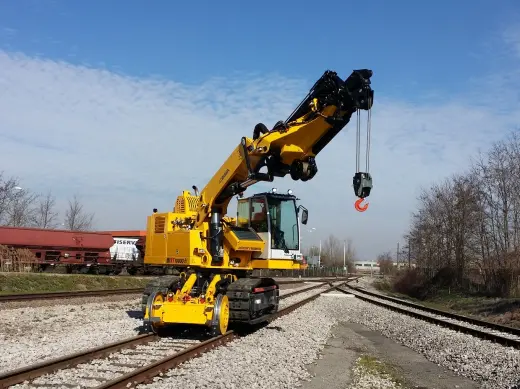

Description
Diesel Engine – DEUTZ Model TCD6.1 L6 – Rated 180 Kw at 2200 rpm
Engine
Oil Capacity -14L
Cooling
System – 35L
Fuel
Tank – 300L
Cabin – Spacious Air-Conditioned workspace with sound-insulated full-vision steel cab.
Skylight window and Panoramic rear window.
Equipped with fully adjustable seat and integrated servo controls; second assistant seat with
independent exit door.
The front cabin glazed wind screen & wiper.
The seat of the operator is spring suspension and it is anatomically designed.
The machine has wide rear mirrors to get complete visibility of the whole working area.
Rear & side camera with LCD colour flat screen monitor dual camera input
Independent
individual control of the crawlers, hand/foot
Extendable
tracked undercarriage, 2.500 mm (retract) – 3.800 mm (extended)
Rubber
or steel pads width 550 mm
Load Sense Hydraulics with Priority Control
Travel
system by hydraulic axial piston motor variable displacement fitted on the gear
boxes.
Speed
of machine on-road. 1St 0 -1,4 km/h ; 2nd 0-3 km/h
Ground
pressure 0.85 kg/cm2
Rail
Wheel system is Hydrostatic Drive Low 0-9 km/h ; High 0-19 km/h
Floating
front axle & hydraulic locking system
Extended
counterweight by hydraulic cylinders (2) controlled from the cab.
Tail
swing turret radius: min 1750 mm, max. 2690 mm.
Swing
speed 10 rpm
Boom
– 5 stage hydraulic telescopic boom with reverse knuckle arrangement.
Overall
reach 15 meters.
Machine
hydraulic system Max. Flow 410 l/min. Pressure 340 bar. 400L Capacity
The
machine is equipped with front & rear LED light, stop lights, working light
(2 in front, 2
rear,
2 on the boom), beacon on the cabin and lights and acoustic warning for reverse
travelling.
Fully
electronic RCI system limits operator error on overload while on rail or off
Emergency
Recovery system by Gasoline Engine power unit
Heavy
duty winch: Max lifting capacity of the winch is 20 tons
