Rail King – HBI

Rail King™ Railcar Movers

Why Rail King?

Rail King railcar movers are robust, rugged and reliable. Each piece is individually painted prior to assembly, providing protection from corrosion and extending the life of the product. Rail King shunting equipment, now in their seventh generation called the G7, they feature heavy-duty engines and frames designed for harsh conditions. Plus, they earn high safety ratings with rear-view cameras, 360-degree visibility and enhanced error detection. We stand behind Rail King with factory warranty, onsite training and Canada-wide customer support.

Rail King units feature heavy-duty steel frames, six-cylinder diesel engines and no-maintenance suspension systems that practically eliminate rail shock and vibration to the cab.

The unique benefits of Rail King

Rail King Railcar Movers have been proven to be the product best suited for companies that are remote, and require consistent production in warm or cold weather.

Most of the general maintenance items, hydraulic & pneumatic components are non-captive, and available anywhere in Canada. Many industry-standard part numbers are found throughout the parts manual, making almost all heavy part suppliers a Rail King provider.

Outstanding product features

Unlike other railcar movers, Rail King has no special hydraulic management system. Therefore, no calibration or manual adjustments need to be made to ensure the safe operation of the machine.

Railcar mover operators have a clear, unobstructed view of the front coupler, with no cameras needed. The rear coupler is also visible from the operator seat, but there is a camera for added visibility.

Rail King drivetrains are leaner than the competitors — we run directly from the transmission to the differentials, which means we can run a lower horsepower rating. We also have more speed at the top end for those long runs.

Our railcar movers run cooler, because we lower our hydraulic system pressure and run a governed air compressor so it doesn’t drive 100% of the time the engine is running. Our reciprocation compressors are common and used in the tire truck industry, working far better in the cold, and are a fraction of the cost to replace versus the screw type that require heavy maintenance every 1000 hours.

Standard features

All Rail King models have the following features:

Heavy-duty six cylinder engines
Four-speed automatic transmission
Patented cushion coupler system
RoyalGlide operator system
Friction road-wheel drive
Full-width bumpers
Fabricated steel couplers

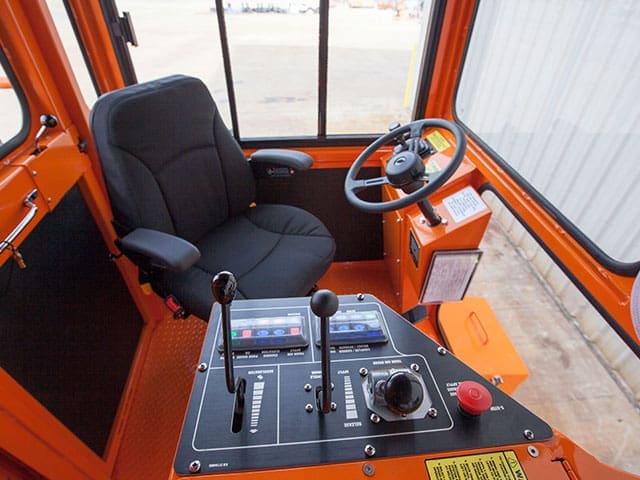

Ergonomic cab layout
360-degree visibility

Royal Glide

The Rail King has a patented RoyalGlide system that started out from the inception of the machine, with the rubber cushion mount for the couplers, the axles and the cabin. The G4+ models have heavy platform isolators that are maintenance-free and will not deflate.

Easy to Upgrade

There are tons of optional features available for Rail King railcar movers. These include cab air-conditioning, centralized lubrication systems, remote control, fire extinguishers, extra lighting packages and Arctic/corrosion protection packages for extreme environments.

AVAILABLE MODELS (NEW)

Model Comparison

Model	Weight (lbs)	Maximum Tractive Effort (lbs)	Engine

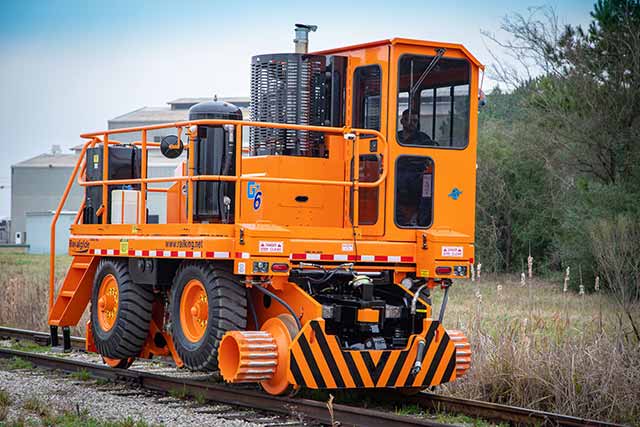

RK285-G6	37,000	44,500	Cummins QSB 6.7L
RK290-G6	39,500	45,350	Cummins QSB 6.7L
RK300-G6	43,250	46,550	Cummins QSB 6.7L
RK320-G6	49,000	48,600	Cummins QSB 6.7L
RK330-G6	51,500	49,250	Cummins QSB 6.7L
RK467-G7	90,500	62,800	Volvo TAD873VE 7.7L

AVAILABLE MODELS (USED)

RK320 – 2007 – RCM656

RK320 – 2007 – RCM675

RK330 – 2021 – RCM930

SS4250 – 2002

ATTACHMENTS

Want more information?

I’d like to talk with a representative about Rail King…

If you’re interested in our Rail King products, please get ahold of us. We would be glad to discuss your needs, and provide you with a detailed estimate of purchase, delivery and training costs. Please include information about what you’ll be moving, your climate and if you’ve worked with a Rail King railcar mover before.

I’d like to learn more about Rail King…

If you’re looking for more details about our Rail King products, please click the button below to view the official Rail King brochure.

View Brochure
